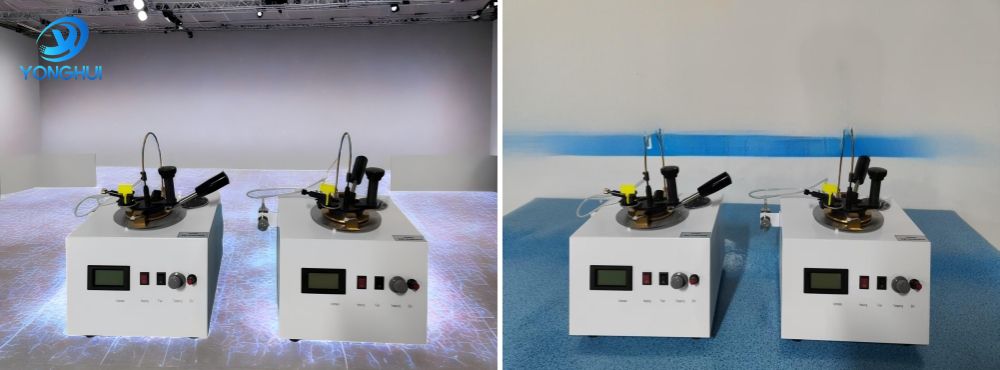

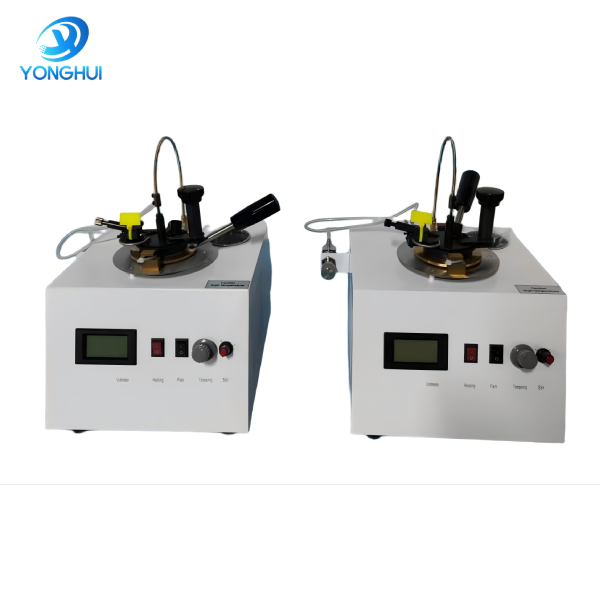

YH-261 manual closed flash point tester

 working power supply ：

AC220V±10%， 50Hz。

 heat unit ：

⑴ The furnace power is 400W dry burn heating rod.

⑵ Heating power can be adjusted from 0 to 600W.

Sample heating rate:

1 ~ 12℃/min.

Electric mixing device:

⑴ Mixing motor: constant speed motor. ⑵ Transmission mode: flexible shaft connection.

⑶ Mixing blade specification: 8×40 (mm).

Standard oil cup:

⑴ Inner diameter: 50.8 mm. ⑵ Depth: 56 mm.

⑶ Test oil capacity scale depth: 34.2 mm.

⑷ Test oil capacity: about 70 ml.

Inflammation device:

Ignition source: gas, ignition hole diameter: 0.8mm.

 thermometer ：

Internal standard mercury thermometer, in line with GB514.

Scale-30~170℃, scale 1℃.

 ambient temperature ：

≤35℃。

 relative humidity ：

≤85％。

Power consumption of the whole machine:

Not more than 650W.

 name

 quantity

 unit

 main engine

1

 short for Taizhou

 thermometer

1

 branch

Test oil cup

1

 individual

 rubber tube

1

 root

 fuse

2

 individual
