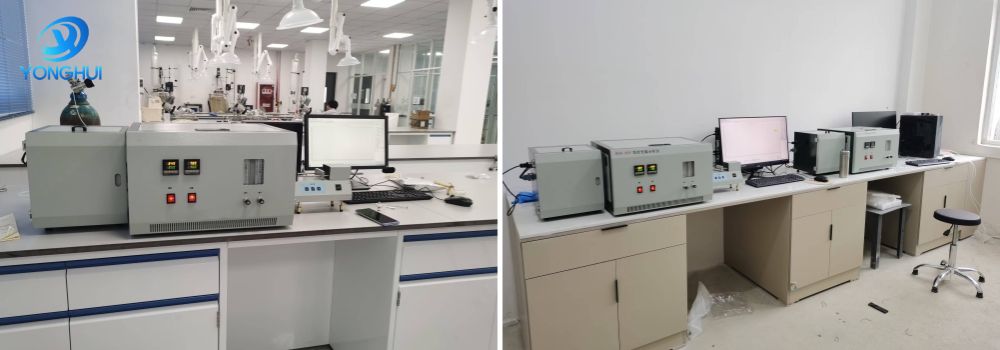

YH-0253A Micro Coulombic Sulfur-Chlorine Analyzer

Application principle:

In the sample, various forms of sulfur (chlorine) are converted into sulfur dioxide (all becoming HCl) under high temperature in nitrogen and oxygen atmospheres. The gas enters the titration cell, where electrolysis generates iodine that reacts with sulfur dioxide (while simultaneously producing silver ions in the cell that react with chloride ions). The computer automatically calculates the total sulfur content (or total chlorine content) based on the electricity consumed by the iodine (or silver ions) according to Faraday's law. The entire analytical process is computer-controlled, with samples loaded by an automated sampler, achieving a high degree of instrument automation.

Key technical features

1. 1. Using the principle of micro-coulomb analysis, a desktop computer with Windows operating platform is configured for direct human-computer interaction.
   2. The oxidation method is adopted to automatically test the content of sulfur or chlorine according to Faraday's law, and realize the rapid analysis of trace sulfur and chlorine in petrochemical products.
   3. The test is widely applicable and adaptable, and can be used to test chlorine in liquid, solid and gas samples.
   4. The operation and test software developed by ourselves can automatically complete data collection, processing, storage and printing.
   5. With a minimum sample volume of 10μl per test, the system achieves rapid analysis, requiring approximately (1-2) minutes per sample.
   6. The quartz cracking tube is made of high-purity quartz material to improve the accuracy and repeatability of the test.
   7. Use corrosion-resistant electrode caps to prevent electrolyte corrosion from causing poor contact and significant measurement errors.
   8. The micro-coulomb titrator employs a one-way valve dehydration device for chlorine content detection, effectively removing moisture from the sample gas to enhance measurement accuracy.

Applied code

Chlorine: SH/T1757, ASTM D5808

Sulfur: SH/T 0253, SH/T 0222, SH/T 1147, GB/T 11061, GB/T 11141, SY/T 7508, ASTM D3120, ASTM D3246

SH/T 0253-92 Determination of total sulfur in light petroleum products by electric method

SH/T 0222-1992 Standard for Determination of Total Sulfur Content in Liquefied Petroleum Gas by Electrochemical Method

GB/T 11061-1997 Determination of total sulfur in natural gas-Oxidative micro-coulomb method

Determination of Organic Chlorine in Crude Oil

Product Parameter:

technical parameter ：

1. Sample state: gas, liquid, solid (select appropriate injector)
2. Gas specifications: Nitrogen purity 99.95%, output pressure ≤0.2MPa

             Oxygen purity 99.95%, output pressure ≤0.2MPa

3. Analysis time: 2 minutes
4. Support LIMS system connection
5. Power supply: AC 220V±22V,50Hz±0.5Hz; Power: 3000W
6. Measuring range: S:0.1mg/L ~ 10000mg/L ~ percentage content

              Cl:0.3mg/L～10000mg/L～Percentage content

7. Repetitive errors:

1, ≤0.1mg/L≤ sample (or standard) concentration <1.0 mg/L ≤±0.1 mg/L (liquid)

2. The sample (or standard) concentration must be within the range of 1.0 mg/L to 10 mg/L, with a maximum deviation of 10% for gas samples.
3. Concentration> 10 mg/L ≤5%
4. Measurement accuracy:

Sample concentration (ng/μl) Injection volume (ml/μl) Relative Standard Deviation (RSD,%)

00.2 (liquid) 10 35

1-10                  10                     10

100                   8                     3

1000                  8                     2

product configuration ：

Standard configuration: host, furnace, stirrer, quartz tube, electrolytic cell, liquid injector, etc.

Optional accessories: solid and gas injectors, quartz tube cracking, computer and printer, and various standard samples.
