Main Features:
1, using advanced single chip microcomputer intelligent temperature control, temperature control accuracy 0.02℃;
2. Chinese LCD screen display, timely display the instrument's temperature, time, parameters and other working status;
3, 4 viscometer test hole design, unique modular technology, can be measured in low viscosity or high viscosity range;
4. The instrument automatically calculates the kinematic viscosity value and test average value, and automatically prints and stores the measurement results;
5. The timing is 0.1 seconds to 999.9 seconds, and the temperature range of room temperature-120.00 degrees can be set arbitrarily;
6. The double-layer constant temperature glass bath has an outer organic glass insulation cover, so the temperature distribution in the bath is uniform and the temperature control effect is good;
7, the heater and other parts are made of stainless steel, corrosion resistant and durable, ring fluorescent lamp lighting, easy to observe;
8. The test times can be freely adjusted from 1 to 4, and more than two kinds of oil samples can be tested in parallel;
9, capillary card uses three vertical points, the operation is flexible and convenient, clamping is reliable;
Main Technical Indicators:
Display: Chinese LCD screen display
Control temperature range: room temperature ~ 100.00℃ arbitrary setting (above 80 degrees, the medium needs to be replaced)
Test samples: 4 holes
Temperature control resolution: 0.1℃/0.01℃ (optional)
Temperature control accuracy: ±0.1℃ at 0.1℃ ±0.01℃ at 0.01℃ (optional)
Timing accuracy: ±0.1S
Time range: 0.1 seconds to 999.9 seconds
Printing machine: low energy consumption thermal printer, paper width 56mm
Thermometer element: precision PT100 platinum resistance
Mixing speed: 1520 rpm
Usage environment: It is recommended to use at room temperature ~45℃
Power supply: AC220V±10% 50Hz
Size (mm): 560 × 370 × 520 (length × width × height)
Instrument quality: 20Kg
Company Introduction
Company Name: Hunan Yonghui Mechanical & Electrical Equipment Co., Ltd.
Company Website: hnyonghui.en.alibaba.com
WhatsApp: 18175170979
WeChat: 18175170979
Hunan Yonghui Electromechanical Equipment Co., Ltd. is a technology-driven enterprise integrating development, design, manufacturing, sales, and operation & maintenance services. With senior engineers possessing extensive experience in analytical instrument development and application, the company specializes in producing petrochemical analyzers, coal quality testing instruments, analyzers for coking plants, and road asphalt pavement maintenance analyzers. It provides comprehensive solutions spanning sampling, sample preparation, and intelligent analytical instruments across testing fields. Committed to sustained technological innovation, the company focuses on R&D, production, marketing, and after-sales service for laboratory testing equipment. Through exploratory innovation and prudent management, it has accumulated robust expertise as a trusted long-term partner for clients. Currently, products are exported to over 80 countries and regions globally, including Indonesia, South Africa, Thailand, Pakistan, Vietnam, Israel, and Mongolia.
Product Details
-
YHCS-2000 High Frequency Infrared Carbon and Sulfur Analyzer
-
YHZD-1000B Hydrolysis Combustion Nitrogen Analyzer
-

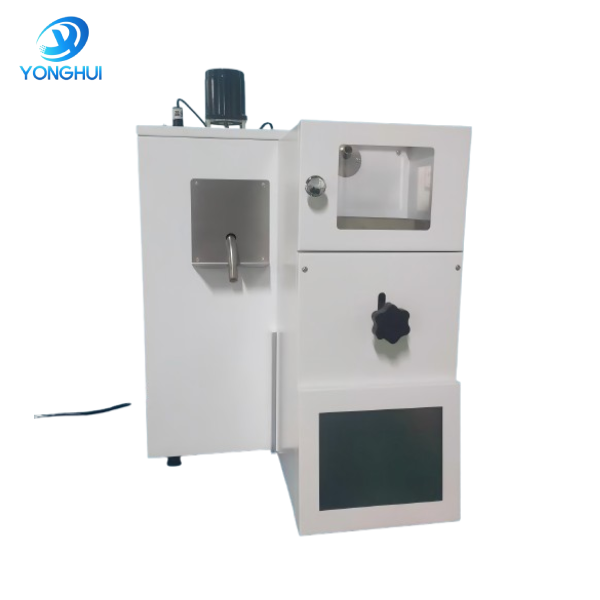

YH-6536C petroleum product distillation tester (low temperature single tube type)
-
