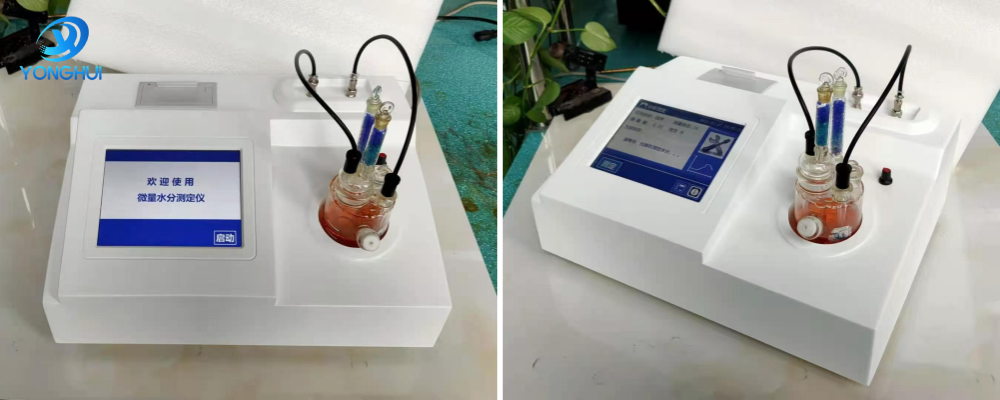

Application fields of micro water content analyzer:
Liquids: Chemical industry: Alcohols, ethers, esters, acids, alkanes, benzene derivatives, amines, organic solvents, phenols, and other organic compounds suitable for determination by Karl Fischer method. Petroleum & Power industry: Insulating oils, transformer oils, turbine oils, and similar oil products. Pharmaceutical industry: Pharmaceutical raw materials. Agricultural chemicals industry: Emulsifiers. Other industries: Lithium battery electrolytes.
Solid: a variety of inorganic salts, citric acid, explosives, paraffin and other solids with good solubility.
Gases: natural gas, liquefied gas, freon, butadiene, chloromethane and other gases.
Main features of micro water content analyzer:
1. 65K color Chinese touch large LCD screen, bilingual display and operation in Chinese and English, single chip and computer composite control system, intelligent analysis and determination;
2. Powerful storage function, 1000 test results can be stored automatically, and historical records can be consulted at any time;
3. The instrument automatically determines the sample and displays the analysis results automatically, and can calculate the average value of the sample after multiple measurements;
4. Automatically calculate and print ug/ppm/ percentage content/mg/L/sample name/experiment date;
Main indicators of micro water content tester:
Electrolysis rate: 2.4 mg water/min
Electrolytic current: 0-430 mA automatic control, high detection sensitivity and fast analysis speed
The measured range is 0.01 micrograms to 200 mg of water
Content range: 0.0001% (1ppm) --100%
Sensitivity: 0.01 micrograms of water
Accuracy: when the water content is 100 micrograms to 1000 micrograms, the error is less than or equal to ±3ug
When the water content is above 1000 micrograms of water, the error is less than or equal to ±0.2% (excluding the injection error)
Drift compensation: microprocessor automatic control
Mixing speed: adjustable control
End indicator: screen display/print output/voice warning/end light indicator
Sample number: user-defined
Printer: Low power consumption high speed thermal printer, 56mm paper width
Self-test function: automatic diagnosis of instrument fault
Special function: can be connected to laptop computer and other computers, can work online or independently
Power consumption: less than 40W
Usage: temperature 5℃-40℃, humidity <85%
Power supply voltage: AC220V±10% 50HZ±2.5HZ
Shape and size: 360 × 310 × 135mm; weight: about 6kg
