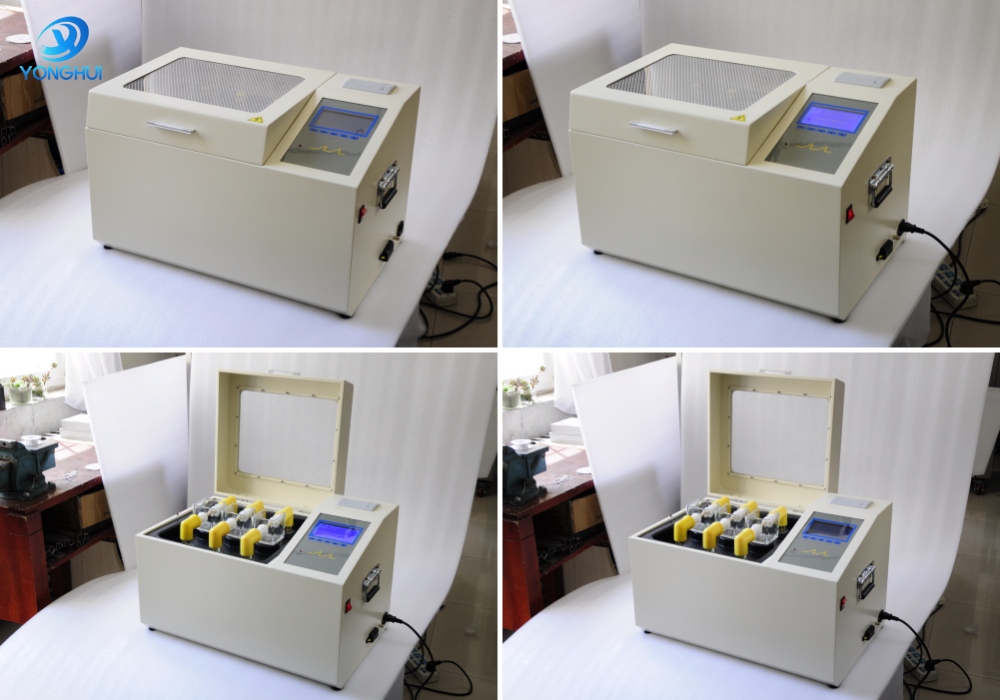

YH-507B automatic insulation oil dielectric strength tester

Instrument features

The instrument adopts large capacity single chip microcomputer control, stable and reliable operation;

The instrument has a wide range watchdog circuit to eliminate the phenomenon of crash;

A variety of operation options, the instrument program has GB507-1986, GB507-2002 two national standard methods, industry standard DL/429, international standard IEC156 and custom operation, can adapt to a variety of users' choices;

The instrument oil cup is cast in one piece of special glass, which eliminates the occurrence of interference such as oil leakage;

The unique high voltage sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding the error caused in the analog circuit, so that the measurement results are more accurate;

The instrument has overcurrent, overvoltage, short circuit and other protection functions, and has a strong anti-interference ability, good electromagnetic compatibility;

Portable structure, easy to move, indoor and outdoor use is very convenient.

• Qualification

  ---

  model	YH-507B
  output voltage	0～80kV
  Capacitance of the booster	1.5 kVA
  rate of rise	0.5kV/s-5.0kV/s (increasing by 0.5) ten levels to choose from
  error	0.2kV/s
  voltage accuracy	(2% reading + 2 characters)
  Power distortion rate	＜1%
  electrode gap	Standard 2.5mm
  test number	6 times (1-10 options)
  Leave undisturbed	900S (0-99min optional)
  Interval rest time	300S (0-99min optional)
  mixing time	15S (0-255min optional)
  display mode	Large screen LCD Chinese character display
  communication interface	Standard 232 communication interface
  outline dimension	Length 430 mm; width 350 mm; height 370 mm
  instruments weight	40 kg
