YH-507E insulation oil dielectric strength tester

YH-507E insulation oil dielectric strength tester

Short Description:

This model of insulation oil dielectric strength tester is a high-precision, fully digital industrial instrument meticulously developed by our company's R&D team. Leveraging industry standards and expertise, we conducted extensive field trials and sustained efforts to create this cutting-edge device. Featuring an innovative design with built-in lithium battery power, it operates seamlessly even without on-site electricity—a breakthrough that fills a significant domestic technological gap. The equipment incorporates a voltage regulator for easy field operation, while its lightweight design and compact size make it more portable than traditional dielectric strength testers, all supported by adjustable frequency capabilities.

Product Detail

Product Tags

INTRODUCTION

1. Breakthrough design, built-in large capacity lithium battery, can be carried out in the field without power supply. The operation without power supply can last 48 hours.
2. Small size, light weight, 23KG, portable design is more convenient for staff to use on site.

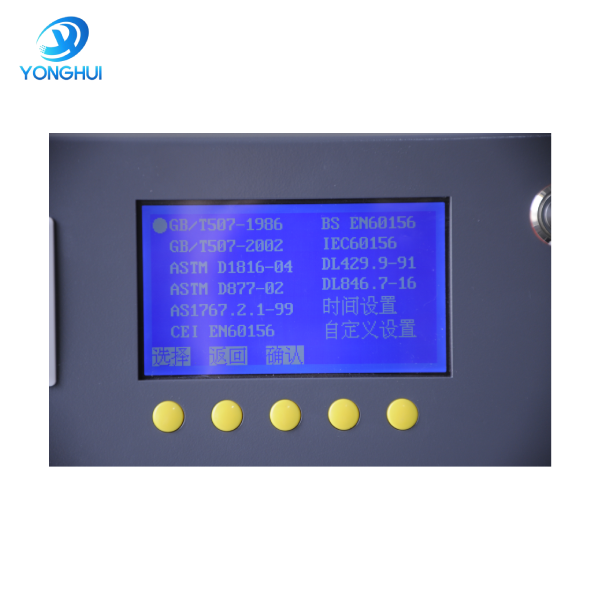

3. The instrument program has a variety of standard selection: national standard, IEC, ASTM customization, etc. It can adapt to the protection functions of different users, and has strong anti-interference ability and good electromagnetic compatibility.
4. Frequency can be set according to customer needs, 50/60HZ conversion, to meet different customer needs


Technical parameters

1. The capacity of the booster is 1.5 kVA
2. Boost speed 0.5kV/s-5.0kV/s (increasing by 0.5) + optional level
                Error 0.2kV/s
3. Output voltage 0-80 kV (optional)
4. Voltage accuracy (2% reading +2 characters)
5. Power distortion rate <1%
6. The electrode gap shall be 2.5mm standard
7. Number of tests: 6 (1-10 optional)
8. Set time 900S (0-5 900S optional)
9. Interval rest time: 300S (0-5900S optional)
10. Stir time 15S (0-99S optional)
11. Display mode Large screen LCD Chinese character display
12. Communication interface The standard 232 communication interface is provided.
13. Shape and size: 350mm long; 280mm wide; 350mm high
14. Weight of the instrument: 20 kg

Product Details

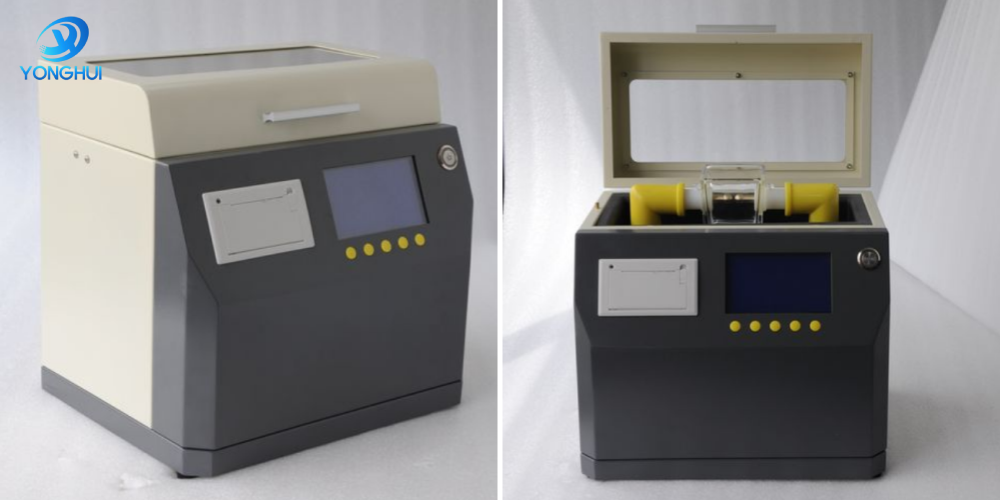

YH-507E insulation oil dielectric strength tester (3).png
